Share your OSW Settings

Discussion in 'Hardware Building/Buying/Usage Advice' started by cookie, May 12, 2016.

  1. SimonJ

    SimonJ Registered

    Joined:
    Dec 24, 2013
    Messages:
    72
    Likes Received:
    59

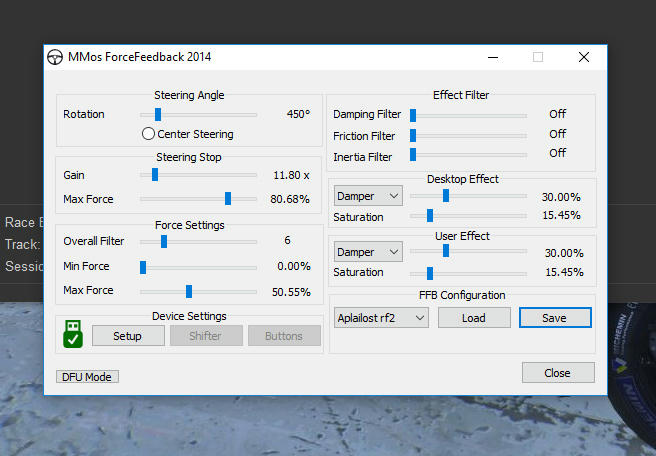

    your settings feel best to my liking and feel. thanks here is what i ended up with for now :)
    [​IMG]
    "Force Feedback":{
    "Brake effects on steer axis":0,
    "Brake effects on steer axis#":"0 = Brake effects on brake axis, 1 = brake effects on steering axis.",
    "Brake effects strength":10000,
    "Brake effects strength#":"-10000 to +10000, applies to all brake effects (force, vibration, static spring, etc?)",
    "Brake spring coefficient":0.6,
    "Brake spring coefficient#":"Static spring effect rate (-1.0 to 1.0)",
    "Brake spring saturation":0.8,
    "Brake spring saturation#":"Static spring effect peak force (0.0 to 1.0)",
    "Clutch effects on steer axis":0,
    "Clutch effects on steer axis#":"0 = Clutch effects on clutch axis, 1 = brake effects on steering axis.",
    "Clutch effects strength":10000,
    "Clutch effects strength#":"-10000 to +10000, applies to all clutch effects (force, vibration, static spring, etc?)",
    "Clutch spring coefficient":0.2,
    "Clutch spring coefficient#":"Static spring effect rate (-1.0 to 1.0)",
    "Clutch spring saturation":1,
    "Clutch spring saturation#":"Static spring effect peak force (0.0 to 1.0)",
    "G920_workaround":true,
    "G920_workaround#":"Workaround for Logitech G920 firmware bugs ... may need to turn this off after firmware update if it gets fixed.",
    "Gearbox effects on steer axis":0,
    "Gearbox effects on steer axis#":"0 = Gearbox effects on gearbox 'axis', 1 = brake effects on steering axis.",
    "Gearbox effects strength":10000,
    "Gearbox effects strength#":"-10000 to +10000, applies to all gearbox effects (force, vibration, static spring, etc?)",
    "Gearbox spring coefficient":0,
    "Gearbox spring coefficient#":"Static spring effect rate (-1.0 to 1.0)",
    "Gearbox spring saturation":1,
    "Gearbox spring saturation#":"Static spring effect peak force (0.0 to 1.0)",
    "Ignore controllers":0,
    "Ignore controllers#":"Do not use FFB on: 1=controller1, 2=controller2, 4=controller3, 8=controller4, 16=controller5, 32=controller6 (or add values to ignore multiple controllers, for example 63 ignores all)",
    "Jolt magnitude":-1,
    "Jolt magnitude#":"How strong jolts from other cars (or walls) are. Suggested Range: -2.0 to 2.0.",
    "Off-road multiplier":0.3,
    "Off-road multiplier#":"Temporary test variable to reduce force feedback strength off-road (0.0 = zero FFB, 1.0 = full FFB)",
    "Other spring coefficient":0.2,
    "Other spring coefficient#":"Static spring effect rate (-1.0 to 1.0) for any other FFB-capable controllers",
    "Other spring saturation":0.05,
    "Other spring saturation#":"Static spring effect peak force (0.0 to 1.0) for any other FFB-capable controllers",
    "Rumble strip magnitude":0.1,
    "Rumble strip magnitude#":"How strong the canned rumble strip rumble is. Range 0.0 to 1.0, 0.0 disables effect.",
    "Rumble strip pull factor":-0.6,
    "Rumble strip pull factor#":"How strongly wheel pulls right\/left when running over a rumble strip. Suggested range: -1.5 to 1.5.",
    "Rumble strip update thresh":0.03,
    "Rumble strip update thresh#":"Amount of change required to update rumble strip effect (0.0 - 1.0)",
    "Rumble strip wave type":0,
    "Rumble strip wave type#":"Type of wave to use for vibe: 0=Sine, 1=Square, 2=Triangle, 3=Sawtooth up, 4=Sawtooth down.",
    "Steering effects strength":-10000,
    "Steering effects strength#":"-10000 to +10000, applies to all steering effects (torque, resistance, static spring, jolt, etc.)",
    "Steering resistance coefficient":0.2,
    "Steering resistance coefficient#":"Coefficient to use for steering resistance. Range: -1.0 to 1.0",
    "Steering resistance saturation":0.3,
    "Steering resistance saturation#":"Saturation value to use for steering resistance. Range: 0 - 1.0",
    "Steering resistance type":0,
    "Steering resistance type#":"0=use damping, 1=use friction",
    "Steering spring coefficient":0.4,
    "Steering spring coefficient#":"Static spring effect rate (-1.0 to 1.0)",
    "Steering spring saturation":0.005,
    "Steering spring saturation#":"Static spring effect peak force (0.0 to 1.0)",
    "Steering torque capability":20,
    "Steering torque capability#":"The maximum torque capability of the wheel (in Nm, obviously)",
    "Steering torque extrap blend":0,
    "Steering torque extrap blend#":"Higher blends of extrapolated value allows driver to feel torque changes even when actual torque exceeds 'input max' (0.0=disables, 1.0=max)",
    "Steering torque extrap time":0.015,
    "Steering torque extrap time#":"Time in seconds to extrapolate steering torque based on current change (Range: 0.001 to 0.050. To disable, set 'blend' to 0.0)",
    "Steering torque filter":5,
    "Steering torque filter#":"Number of old samples to use to filter torque from vehicle's steering column (0-32, note that higher values increase effective latency)",
    "Steering torque minimum":0.005,
    "Steering torque minimum#":"Minimum torque to apply in either direction to overcome steering wheel's 'FFB deadzone' caused by friction",
    "Steering torque per-vehicle mult":0.5,
    "Steering torque per-vehicle mult#":"Per-vehicle steering column torque multiplier (this is a copy of the .CCH value)",
    "Steering torque sensitivity":1,
    "Steering torque sensitivity#":"Sensitivity curve applied to representable torques: 0.0=low 1.0=linear 2.0=high",
    "Steering torque zero-speed mult":0.3,
    "Steering torque zero-speed mult#":"Multiplier at zero speed to reduce unwanted oscillation from strong static aligning torque",
    "Test_workaround":true,
    "Test_workaround#":"Workaround for apparent driver CTD on release",
    "Throttle effects on steer axis":0,
    "Throttle effects on steer axis#":"0 = Throttle effects on throttle axis, 1 = throttle effects on steering axis.",
    "Throttle effects strength":10000,
    "Throttle effects strength#":"-10000 to +10000, applies to all throttle effects (force, vibration, static spring, etc?)",
    "Throttle spring coefficient":0.8,
    "Throttle spring coefficient#":"Static spring effect rate (-1.0 to 1.0)",
    "Throttle spring saturation":1,
    "Throttle spring saturation#":"Static spring effect peak force (0.0 to 1.0)",
    "Type":1,
    "Type#":"Type of force feedback: 0=off 1=wheel 2=joystick 3=rumble\/gamepad 4=custom",
    "Use thread":true,
    "Use thread#":"Use a separate thread to issue FFB commands which may block with some drivers"
    },

    Last edited: Aug 6, 2017
    ApainPlost, nipzon and bravotangosix like this.
  2. ApainPlost

    ApainPlost Registered

    Joined:
    May 6, 2016
    Messages:
    48
    Likes Received:
    92
    @SimonJ,
    Thanks for your settings. Really good one .... smoothy and more accurate ...

    SimonJ likes this.
  3. SimonJ

    SimonJ Registered

    Joined:
    Dec 24, 2013
    Messages:
    72
    Likes Received:
    59
    Thanks spent all day messing with it setting works well for dirt rally too but turn max force to 20% in mmos to start got shock at 50 need to see if there is config file there lol
    feels lovely at 20% odd
    Mainly is a mix of your settings mainly and Jed's File from simtech racing with dampers tweaked to my liking both very nice configs but very different :)
    http://www.simtechracing.co.uk/downloads
    Once you find that sweet spot to your liking Wow this wheel feels so good :)

    Last edited: Aug 7, 2017
  4. bravotangosix

    bravotangosix Registered

    Joined:
    Nov 21, 2015
    Messages:
    187
    Likes Received:
    140
    Really looking forward to messing with these settings. My wheel has been dispatched and arrives on Wednesday! Have to temper my excitement. Who knew Christmas also fell on the 9th of August? :D

    bluet, SimonJ and patrickkluiters like this.
  5. SimonJ

    SimonJ Registered

    Joined:
    Dec 24, 2013
    Messages:
    72
    Likes Received:
    59
    Yep still waiting for my wheel with gears and buttons from Spain brought temp one on Thursday for Friday delivery so i was not sat looking at it all weekend clucking. It was in Netherlands on Friday so think it will be tomorrow:)
    I came from as T500 replaced pedals 6 months ago for HE-Pro's their amazing too

    Try my settings i love it very happy had it clipping in game and with no ffb meter in DX11 took a while. credit should go to ApainPlost and Jed from Simtech racing in UK as they have done all the hard work i just took bits from each and tweaked to my liking :)

    my mmos settings are at 45% to 55% so i think that is about 10nm then a .45 multi in game so think that is about 4.5nm max.
    Not sure I am calculating that right but max NM for T500 was 2.4nm Max and with OSW getting 4nm to 5nm with my settings.

    This is way plenty enough for me set to .55 to .65 do few laps and i am done in lol.
    Glad i never went for the 30nm motor its is really not needed the wheel is a beast :cool:

    bravotangosix likes this.
  6. bravotangosix

    bravotangosix Registered

    Joined:
    Nov 21, 2015
    Messages:
    187
    Likes Received:
    140
    That sounds awesome. I'm especially glad to hear your more than happy with 20nm over the 30nm as it was a concern of my own when ordering. :cool: Am.....so..........close..........can........almost.........taste..it.:p

  7. SimonJ

    SimonJ Registered

    Joined:
    Dec 24, 2013
    Messages:
    72
    Likes Received:
    59
    Got my wheel from Carlos in Spain today :)
    This is a beautifully made and extremely solid wheel that looks feels like it should cost way more than it did :)
    Very happy to say the least brought without any doubt after reading reviews on his site and i am sure i will be buying more from him in the future. Hub for my temp wheel i brought springs to mind :)

    The wheel is a dream to drive the buttons and knobs feel great. The gear selectors are machined anodised ally with lovely feel and looks bullet proof.
    I brought the quick release adaptor they do which clamps directly to shaft of motor again this is and looks very strong and does not make wheel sit out to far so perfect for my setup and cheep to add to all wheels you end up buying.
    Release the leaver on clamp wheel pulls off. the wheel came in a nice cloth bag similar to crash helmet ones to keep it clean dust free when off the rig
    OSW kit is a beast destroyed set of cloth type gloves on dirt rally in 30mins at 20% in mmos lol
    was loads of fun though.

    https://www.simracingcoach.com/en/contenido/volante-gt1/

    [​IMG]

    Last edited: Aug 8, 2017
  8. SimonJ

    SimonJ Registered

    Joined:
    Dec 24, 2013
    Messages:
    72
    Likes Received:
    59
    So did you bunk day of work today to setup ?
    If you get stuck with anything message us will help if i can pretty easy once mmos setting done :)

    Last edited: Aug 10, 2017
    bravotangosix likes this.
  9. mixer61

    mixer61 Registered

    Joined:
    Dec 26, 2011
    Messages:
    198
    Likes Received:
    9
    Hello !
    Which are files json concerned by the smoothing?
    Thanks

  10. SimonJ

    SimonJ Registered

    Joined:
    Dec 24, 2013
    Messages:
    72
    Likes Received:
    59
    if you mean taking out harshness. filters in mmos and in game :)

  11. mixer61

    mixer61 Registered

    Joined:
    Dec 26, 2011
    Messages:
    198
    Likes Received:
    9
    Nothing in the "controller Json" ? :(

  12. bravotangosix

    bravotangosix Registered

    Joined:
    Nov 21, 2015
    Messages:
    187
    Likes Received:
    140
    Yes it arrived. It's a beautiful thing. Didn't skip work. Finished late too :mad:. The break out box really looks the part. Tiny too. Makes it look more like a product rather than a cobbled together group of components. Very smart. Will upload pics when I get a chance.

    As for setting it up............Simplicity have a strange way of doing things. The product I ordered (which is perfect btw. Zero issues.) had the option of a 4 week pre build and test which is why it took so long to arrive. But! The force feedback controller which had been through the testing process has had it's firmware erased prior to shipping!!! No idea why. I do have a free 1-hour phone call setup with Simplicity which involves re flashing the firmware. I don't know if this is to help the wheel accept my system or what? Totally at a loss on that one.

    So to cut a long story short, I now have to arrange this setup phone call in order to be able to use my wheel. Have to contact them to see when we can hook up. But, what can you do eh? :rolleyes:

  13. SimonJ

    SimonJ Registered

    Joined:
    Dec 24, 2013
    Messages:
    72
    Likes Received:
    59
    Should have firmware shipped in it you would have thought. but wont take too long to sort it these things happen
    I would contact them asap they will want to sort it quickly for you or should :)
    Kind of why i got from Uk i just message him via there Facebook page spent some time chatting over phone too mainly about how good it is. Made a new friend too :)
    hope your sorted soon so you gat that big grin on you face :) your in for a treat :)

    Last edited: Aug 10, 2017
  14. SimonJ

    SimonJ Registered

    Joined:
    Dec 24, 2013
    Messages:
    72
    Likes Received:
    59
    not sure think most are force related curbs, spring effects etc
    filters smooth it out on motor side and controller file makes it feel good tried a few.
    The one above i posted feels best to my liking amazing in fact :)
    even tried few files in the controllers folder copied and pasted ffb settings only into OSW default file just remember to set this file to 20nm ""Steering torque capability":20, " or max the torque motor can deliverI left it at 2.4nm on T500 one got a shock nearly ripped arms off lol

    Last edited: Aug 10, 2017
  15. bravotangosix

    bravotangosix Registered

    Joined:
    Nov 21, 2015
    Messages:
    187
    Likes Received:
    140
    OK. I'm all set up and running. No issues with setup :D. AAaaaaaaaaaaaaaaaaaand now I have to go to work :mad::mad::mad:

    SimonJ likes this.
  16. SimonJ

    SimonJ Registered

    Joined:
    Dec 24, 2013
    Messages:
    72
    Likes Received:
    59
    Cool you in for a treat when you get home then glad you sorted it quickly :)
    looks like you got 6am starts like me this week by time of your post :)
    If you have URD EGT 2015 mod come play on our servers :) if not nice mod to have most of us have all of them. it is lovely mod at only 5.40 euros
    https://www.unitedracingdesign.net/rfactor-2
    http://vrc.createaforum.com/index.php?action=forum

  17. bravotangosix

    bravotangosix Registered

    Joined:
    Nov 21, 2015
    Messages:
    187
    Likes Received:
    140
    My start time was 10:45 BST. Had my first real play around today.

    My first impressions were terrible TBH as the wheel was clipping like crazy. Then I reduced the minimum torque from within rF2. Boy do small adjustments have a dramatic effect on how this wheel behaves. While I'm still tinkering, the wheel is really starting to come alive. Love the power and detail. It's just so bloody positive. I actually got into my real car and for a second thought 'this steering could do with being a bit tighter!'. o_O
    This is the only wheel I've ever owned where I've thought it would break me long before I could ever break it. It really give me more confidence to attack tracks with any given vehicle (although this is more me feeling I was being rough my old T500 rather than any lack of commitment when driving).
    I've still to locate a way to reduce the rubble strip rumble because I keep wanting to just drive atm. All in good time. :cool:
    Thanks for the invite btw. I do have URD already. Great MOD. I think your across the pond if I'm not mistaken? Might make for an interesting ping me thinks :eek:
    Gotta go race now. Can't leave it alone :D

  18. SimonJ

    SimonJ Registered

    Joined:
    Dec 24, 2013
    Messages:
    72
    Likes Received:
    59
    so in rf2 were you set wheel rotation, map buttons etc
    save it if you have not then save again different name different name say bravo12 for example so you have 2 of same files
    incase you wan to go back to what you had :)
    goto userdata/controllers you will see the 2 files you just made pick 2nd one bravo12 right click edit

    copy these files and paste into the controller file to replace the same settings try that
    or adjust these settings as not too many and re save
    "Rumble strip magnitude":0.1,
    "Rumble strip magnitude#":"How strong the canned rumble strip rumble is. Range 0.0 to 1.0, 0.0 disables effect.",
    "Rumble strip pull factor":-0.6,
    "Rumble strip pull factor#":"How strongly wheel pulls right\/left when running over a rumble strip. Suggested range: -1.5 to 1.5.",
    "Rumble strip update thresh":0.03,
    "Rumble strip update thresh#":"Amount of change required to update rumble strip effect (0.0 - 1.0)",
    "Rumble strip wave type":0,
    "Rumble strip wave type#":"Type of wave to use for vibe: 0=Sine, 1=Square, 2=Triangle, 3=Sawtooth up, 4=Sawtooth down.",
    curbs a dream :)
    could even try hole ffb file above :)

    We have 2 UK and US servers setup race league server is in US mine in UK :)

    bravotangosix likes this.
  19. mixer61

    mixer61 Registered

    Joined:
    Dec 26, 2011
    Messages:
    198
    Likes Received:
    9
    Hello,
    I have many vibrations with my OSW (standard mige + simucube) Wich line in controller J.son for "vibrators", kérs etc....?
    Thanks
    (sorry for my english !)

    Last edited: Aug 13, 2017
  20. SimonJ

    SimonJ Registered

    Joined:
    Dec 24, 2013
    Messages:
    72
    Likes Received:
    59
    Funny thing is always found myself wanting bit more force with T500 now generally find my self going for less 55%moss and .50 multi good place to start 5ish Nm i think max ffb still twice T500
    Try the using the hole ffb file above and same mmos settings as in picture
    then use .50 to ,60 muiti in game
    set effects damping filter to 4 or 5 if you still get vibrations :)


Share This Page
